Performance Comparison

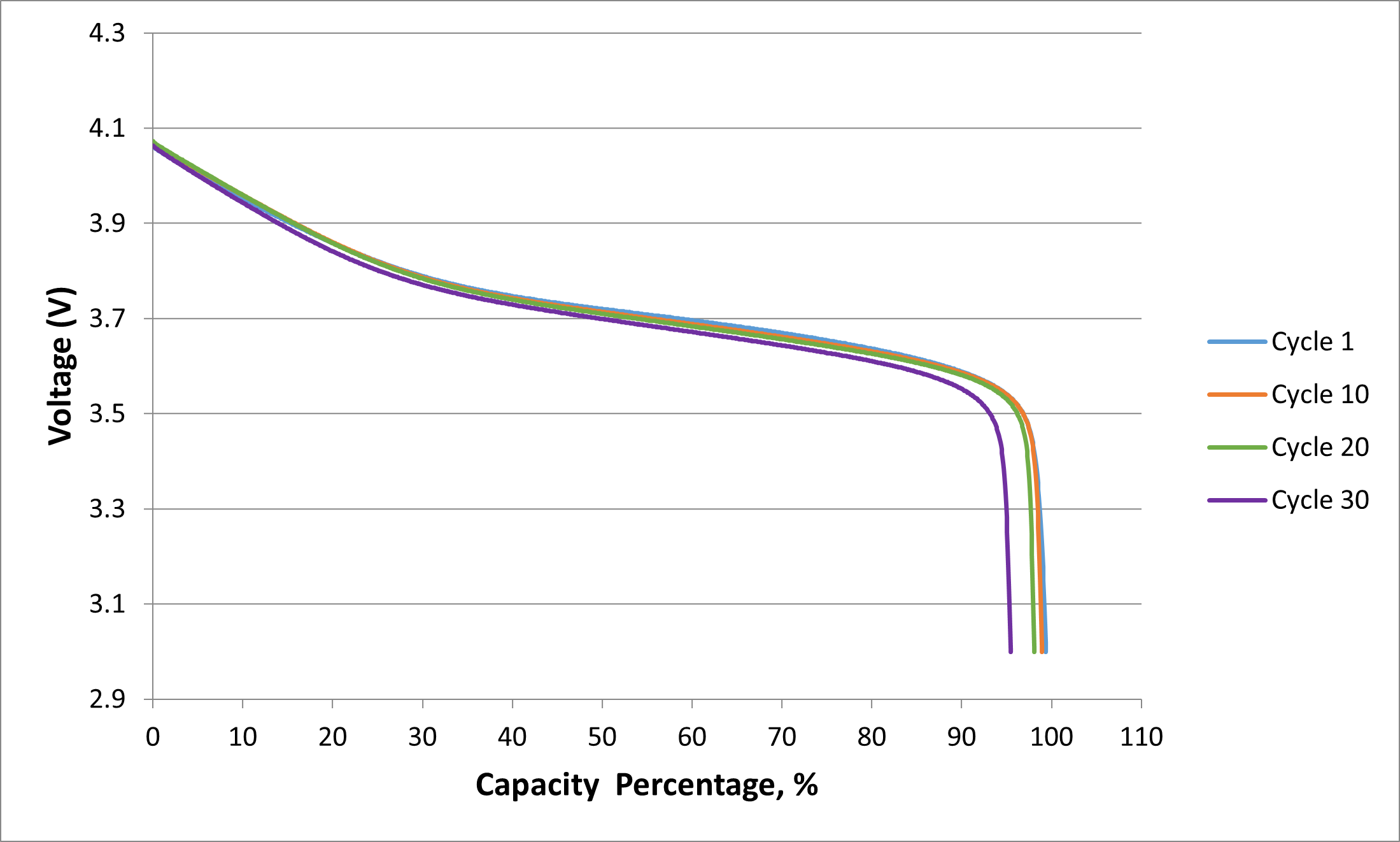

Discharge Voltage
(at 100°C)

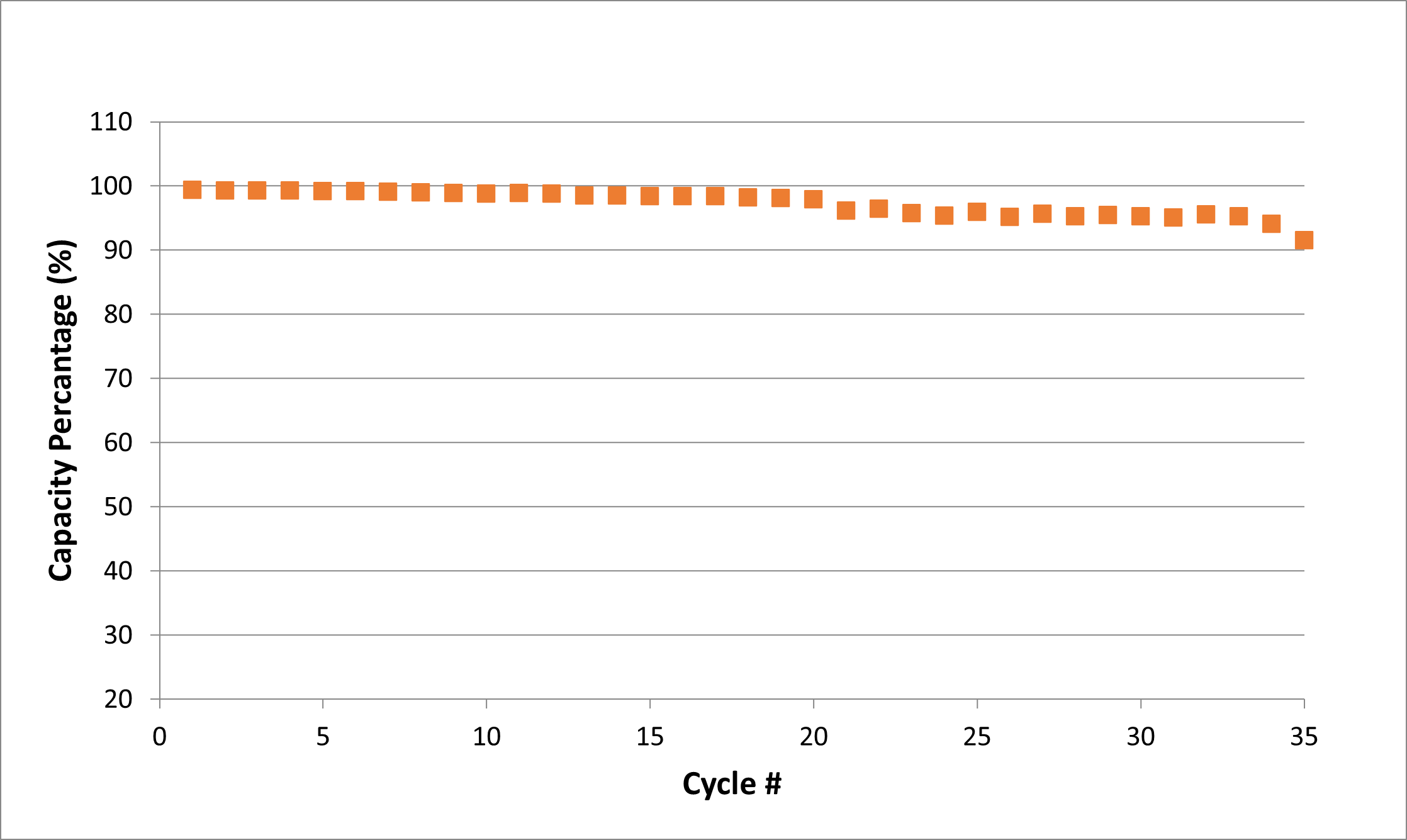

Cycle Life
(at 100°C)
Projected Cell Specifications
Physical Characteristics:
Nominal Size: D
Construction: Spiral
Diameter: 33.3 mm
Height: 61.7 mm
Weight: 120 grams (estimated)
Safety Features:
Shutdown Separator
Non-flammable electrolyte
Extended temperature safety margin
Electrical Characteristics:
Nominal Capacity*:
9.5 Ah (Gen 1) – 11.0 (Gen 2)
Operating Voltage: 4.4 – 3.0V
Rated Current*: 500 mA
Max Current*: 2000 mA
Operating Temperature: -20°C to +100°C
Cell Features:
Secondary chemistry (Rechargeable)
High rate capability
No passivation effects
Stainless Steel container
Hermetically sealed
Custom terminations
*Projected values based on modeling and actual test data
